General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: OMNIVS1500XL
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: Omni
Product Series: VS

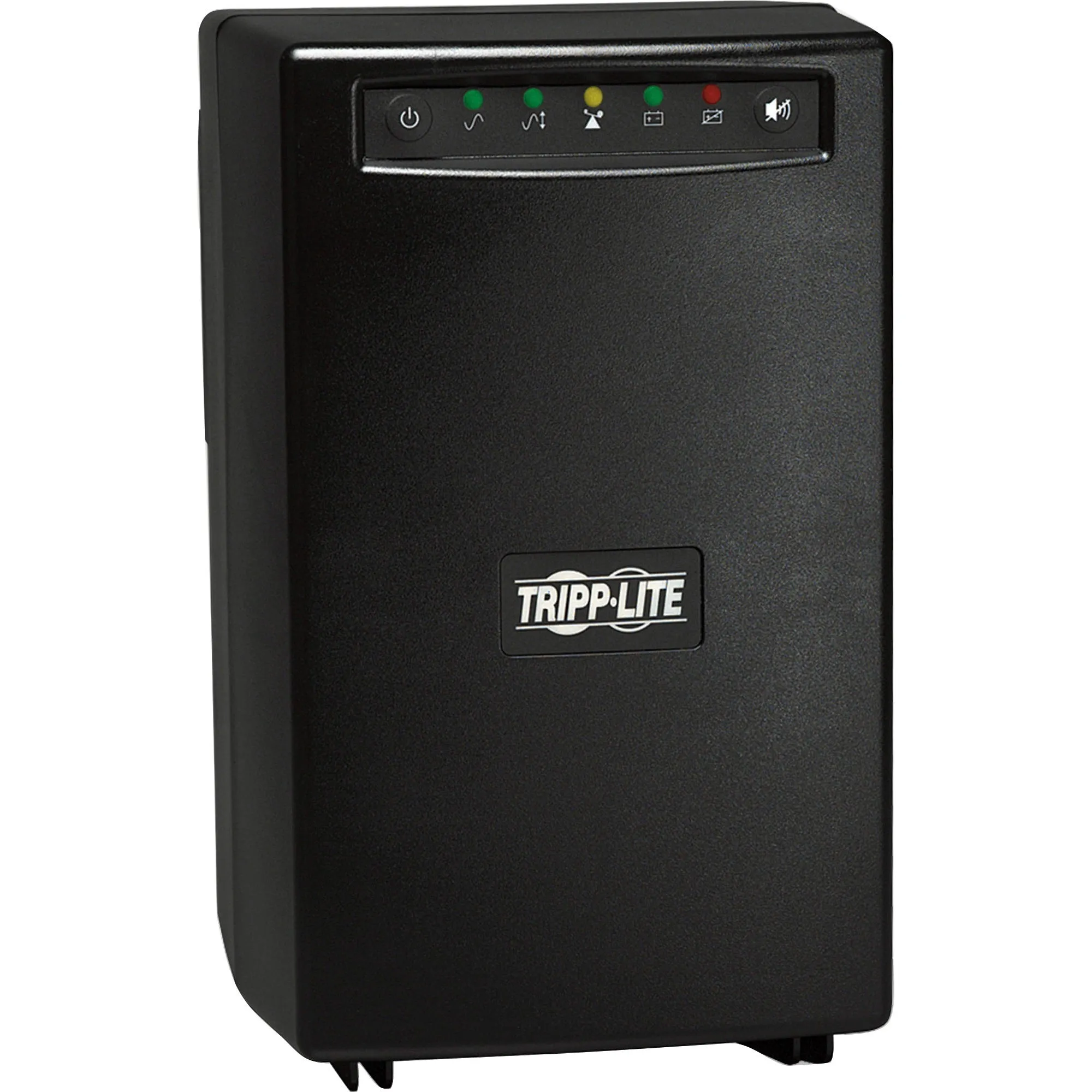

Product Name: 8-Outlet UPS Power Protection System
Marketing Information: Line Interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Includes six battery supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in dataline suppression offers protection for equipment with single-line telephone/DSL or network Ethernet connection. Offers 5 minute battery runtime with a full load of 1500VA and 14 minutes with a half load of 750VA.
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles:

• 2 x NEMA 5-15R
• 6 x NEMA 5-15R

Dataline Protection: RJ-45
Cord Length: 6 ft
Transfer Time: 4 ms

Power Description

Load Capacity: 1500 VA/940 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 480 J

Management

Alarm: On Battery

Controls/Indicators

Status Indicators: 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation

Interfaces/Ports

USB: Yes

Battery Information

Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 14 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Color: Black
Height: 11.8"
Width: 7.3"
Depth: 7.5"
Form Factor: Tower
Weight (Approximate): 32.20 lb

Miscellaneous

Package Contents:

• OMNIVS1500XL Line Interactive UPS
• USB and telephone cable
• User manual with warranty information

Additional Information:

• • OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
  • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
  • Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power
  • 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
  • USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
  • PowerAlert software available via free download from www.tripplite.com
  • Dataline surge suppression protects standard dialup/DSL or ethernet line connection
  • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
  • 1500VA power handling ability supports a variety of sensitive electronic equipment
  • 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA)
  • Runtime is further expandable with the addition of BP24V14 external battery pack
  • Supports hot swappable battery replacement via built-in access panel
  • 200,000 connected equipment insurance (USA & Canada Only)
  • 2 year warranty

Certifications & Standards:

• UL1778 (USA)
• cUL (Canada)
• FCC Class B (emissions)
• NOM (Mexico)
• FCC Part 68 / Industry Canada (telecommunications)

Recycled: No
Assembly Required: No
Country of Origin: China

Warranty

Limited Warranty: 3 Year
