General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: ECO350UPS
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Series: ECO

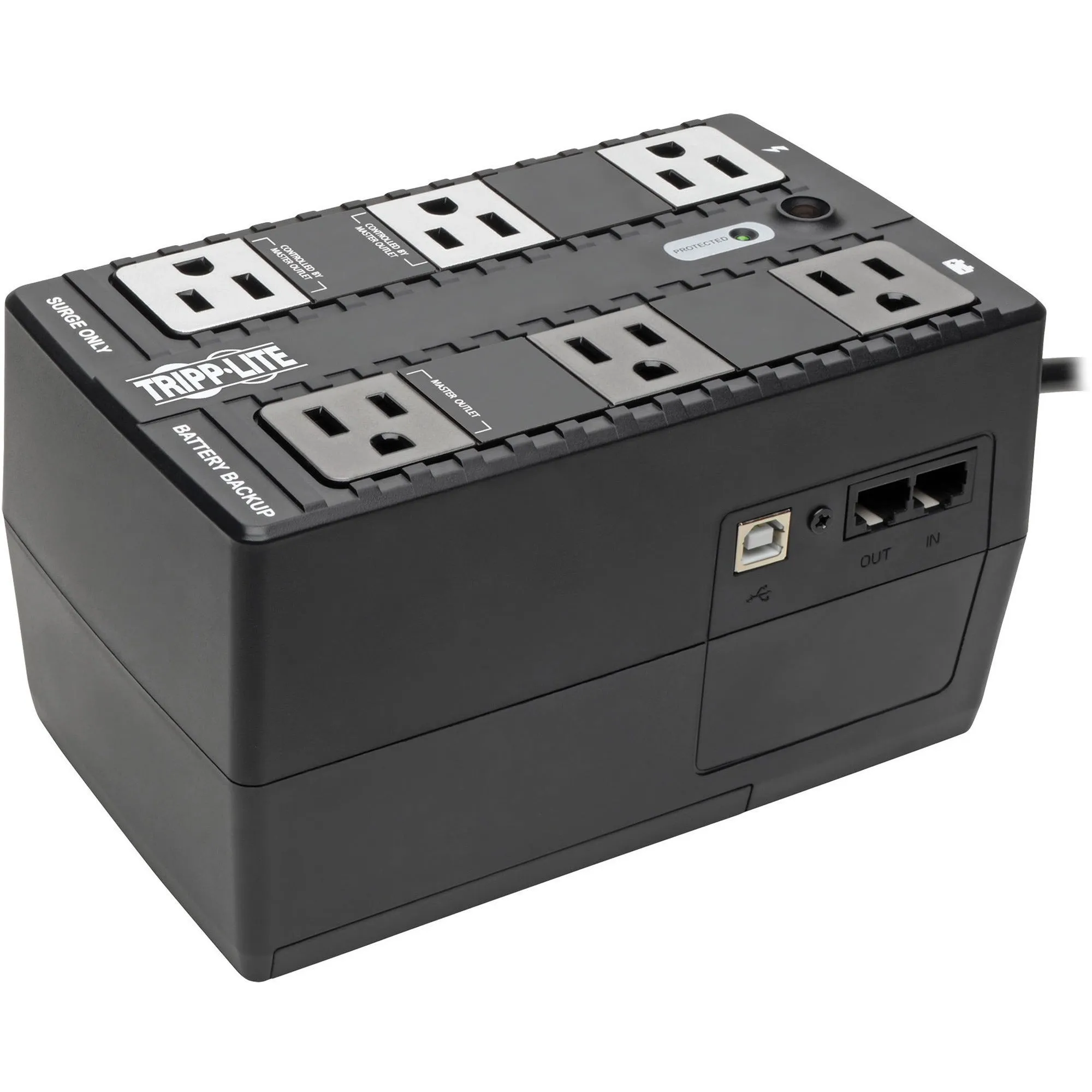

Product Name: Ultra-hi Efficncy ECO Series UPS System
Marketing Information: Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes three battery-supported outlets for computer, monitor and one vital system peripheral, plus three additional surge suppression-only outlets for accessories not requiring battery support. Two of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 350VA/180-watt power handling ability supports entry-level PC systems for up to 12 minutes during power fail conditions.
Packaged Quantity: 1 Each
Product Type: Standby UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles: 6 x NEMA 5-15R
Transfer Time: 4 ms

Power Description

Load Capacity: 350 VA/180 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Interfaces/Ports

USB: Yes

Battery Information

Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 8 Minute
Typical Battery Recharge Time: 7 Hour

Physical Characteristics

Color: Black
Height: 3"
Width: 6.4"
Depth: 8"
Form Factor: Desktop
Weight (Approximate): 5.20 lb

Miscellaneous

Package Contents:

• 350VA Desktop UPS
• USB Interface Cable
• PowerAlert software available via free download
• Instruction Manual with Warranty Information

Certifications & Standards:

• UL1778 (USA)
• CSA (Canada)
• NOM (Mexico)
• Class B (EMI)
• FCC Part 68 / Industry Canada (telecommunication)

Recycled: No
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR 2.0
Country of Origin: China

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

• 2 year
• 100,000 connected equipment guarantee
