General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SMC10002URM
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartPro

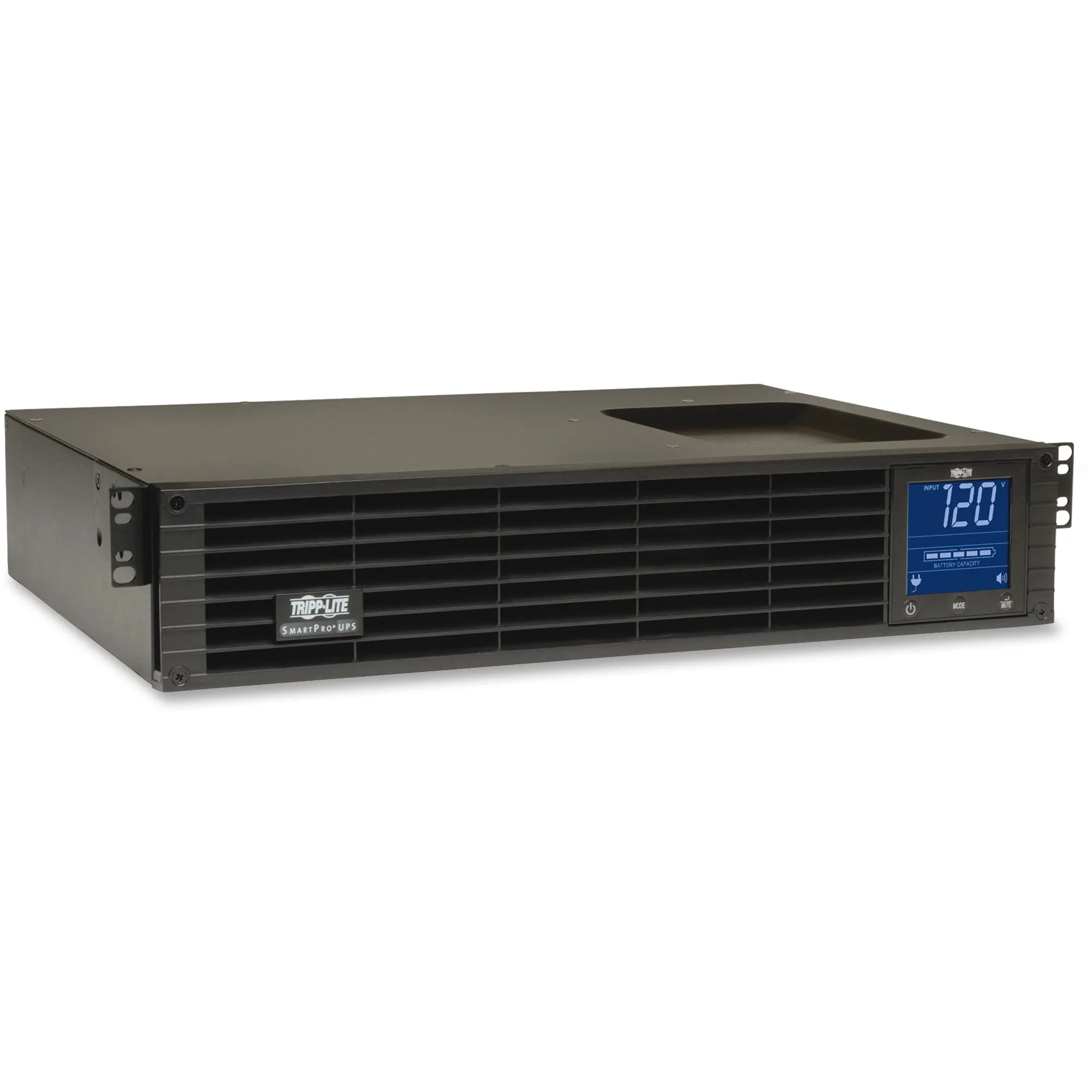

Product Model: SMC10002URM
Product Name: Line-interactive UPS Power Supply
Marketing Information: Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles: 6 x NEMA 5-15R
Protection Type:

• Brownout
• Over Voltage
• Surge
• Black Out
• Under Voltage
• EMI / RFI

Emergency Power OFF: Yes
Cord Length: 9.84 ft

Power Description

Load Capacity: 1000 VA/700 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Current: 9.20 A
Waveform Type:

• Sine Wave
• Pure Sine Wave

Surge Energy Rating: 570 J
Circuit Breaker: Yes

Management

Alarm:

• UPS StartUp
• Power Failure
• Low Battery
• Overload
• UPS Fault
• Remote Shutdown

Battery Management: user-replaceable

Controls/Indicators

Status Indicators: LEDs

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 6.40 Minute
Backup/Run Time (Half Load): 15.60 Minute
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 45 dB
Thermal Dissipation: 35.75 W

Physical Characteristics

Height: 3.5"
Width: 17.4"
Depth: 12.5"
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 35.40 lb

Miscellaneous

Package Contents:

• SMC10002URM UPS System
• USB Cable
• 2 & 4 Post Rackmount Installation Hardware
• Instruction Manual

Certifications & Standards:

• Tested to UL1778 (USA)
• Tested to CSA (Canada)
• Tested to NOM (Mexico)
• Meets FCC Part 15 Category B (EMI)

Recycled: No
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China

Warranty

Limited Warranty: 2 Year
